Creating a Check

Within Infrahub a Check is defined in an external repository. However, during development and troubleshooting it is easiest to start from your local computer and run the check using infrahubctl check.

The goal of this guide is to develop a Check and add it to Infrahub, we will achieve this by following these steps.

Identify the relevant data in the database that you want to use as input for the check using a GraphQL query, that can take an input parameter to filter the data
Write a Python script that will process and validate the data using your custom business logic
Create an entry for the check within an .infrahub.yml file
Create a Git repository
Test the Check with the infrahubctl command
Add the repository to Infrahub as an external repository
Test the Check in a proposed change

In this guide we are going to work with the builtin tag objects in Infrahub. The goal will be to use a Check to validate the naming convention of an object using a Regex. Validating a string with a Regex is something we can do directly in the schema so this check won't be super helpful but the goal is instead to show how Checks work. Once you have mastered the basics you will be ready to go on to create more advanced Checks.

1. Creating a query to collect the desired data

As the first step we need to have some data in the database to actually query.

Create three tags, called "color-red", "color-green", "blue", either using the frontend or by submitting three GraphQL mutations as per below (just swapping out the name of the color each time). Note that the "blue" tag is following a different naming scheme compared to the other tags. This is on purpose and is needed for the rest of the guide.

mutation CreateTags {
  BuiltinTagCreate(
      data: {name: {value: "color-red"}, description: {value: "The red tag"}}
  ) {
    ok
    object {
      id
    }
  }
}

The next step is to create a query that returns the data we just created. The rest of this guide assumes that the following query will return a response similar to the response below the query.

query TagsQuery {
  BuiltinTag {
    edges {
      node {
        name {
          value
        }
        description {
          value
        }
      }
    }
  }
}

Response to the tags query:

{
  "data": {
    "BuiltinTag": {
      "edges": [
        {
          "node": {
            "name": {
              "value": "blue"
            },
            "description": {
              "value": "The blue tag"
            }
          }
        },
        {
          "node": {
            "name": {
              "value": "color-green"
            },
            "description": {
              "value": "The green tag"
            }
          }
        },
        {
          "node": {
            "name": {
              "value": "color-red"
            },
            "description": {
              "value": "The red tag"
            }
          }
        }
      ]
    }
  }
}

Create a local directory on your computer.

mkdir tags_check

Then save the TagsQuery as a text file named tags_check.gql.

2. Create the Python check file

The next step is to create the Check Python business logic. The check is a Python class that inherits from InfrahubCheck from the Python SDK. Create a file called tags_check.py:

import re

from infrahub_sdk.checks import InfrahubCheck


RE_TAG = re.compile(r"^color-[a-z]+")

class ColorTagsCheck(InfrahubCheck):
    query = "tags_check"

    def validate(self, data):
        for tag in data["BuiltinTag"]["edges"]:
            if not RE_TAG.match(tag["node"]["name"]["value"]):
                self.log_error(
                    message=f"Invalid tag name: {tag['node']['name']['value']}",
                    object_id=tag["node"]["name"]["value"],
                    object_type="BuiltinTag"
                )

The example is an example of what a naming convention logic for a tag could look like.

We import the InfrahubCheck class.

from infrahub_sdk.checks import InfrahubCheck

We create and compile a regular expression against which we will match the tag names

RE_TAG = re.compile(r"^color-[a-z]+")

We define our own class that inherits from InfrahubCheck.

class ColorTagsCheck(InfrahubCheck):

Here we need to take note of the name of the class as we will need it later, optionally we can just call it Check which is the default name.

We define the query that will provide us the input data

    query = "tags_check"

The query references to the file tags_check.gql that we created earlier.

We define the validate method

    def validate(self, data):
        for tag in data["BuiltinTag"]["edges"]:
            if not RE_TAG.match(tag["node"]["name"]["value"]):
                self.log_error(
                    message=f"Invalid tag name: {tag['node']['name']['value']}",
                    object_id=tag["node"]["name"]["value"],
                    object_type="BuiltinTag"
                )

When running the check, the data argument will contain the response to the GraphQL query we created. We loop over every BuiltinTag node in data and validate that the name of the tag matches with the regular expression we created earlier.

If the name does not match the regular expression, we log an error. A check will have failed if it has encountered errors during the execution.

3. Create a .infrahub.yml file

In the .infrahub.yml file you define what checks you have in your repository that you want to use in Infrahub.

Create a .infrahub.yml file in the root of the directory.

---
check_definitions:
  - name: "check_color_tags_name"
    class_name: "ColorTagsCheck"
    file_path: "tags_check.py"

Two parts here are required, first the name of the check which should be unique across Infrahub and also the file_path that should point to the Python file within the repository. In this example we have also defined class_name, the reason for this is that we gave our class the name ColorTagsCheck instead of the default Check.

4. Create a Git repository

Within the tags_check folder you should now have 3 files:

tags_check.gql: Contains the GraphQL query
tags_check.py: Contains the Python code with the business logic for the check
.infrahub.yml: Contains the definition of the check

Before we can test our transform we must add the files to a local Git repository.

git init --initial-branch=main
git add .
git commit -m "First commit"

5. Test the check using infrahubctl

Using infrahubctl you can first verify that the .infrahub.yml file is formatted correctly by listing available checks.

❯ infrahubctl check --list
Python checks defined in repository: 1
check_color_tags_name (tags_check.py::ColorTagsCheck) Target: -global-

Run the check by specifying the name of the check as an argument.

❯ infrahubctl check check_color_tags_name
[09:23:25] INFO     HTTP Request: POST http://localhost:8000/graphql "HTTP/1.1 200 OK"
           ERROR    tags_check::ColorTagsCheck: FAILED
           ERROR      Invalid tag name: blue

We have now successfully created a check. Most of the checks you will create would be more complex than this, however the main building blocks will always remain the same.

6. Adding the repository to Infrahub

In order to avoid having the same instructions over and over please refer to the guide adding a repository to Infrahub in order to sync the repository you created and make it available within Infrahub.

7. Using the check within Infrahub

Once the repository is synced to Infrahub, the check will be run as part of a proposed change.

Open a branch named test
Create a new BuiltinTag object named orange in the test branch
Open a proposed change

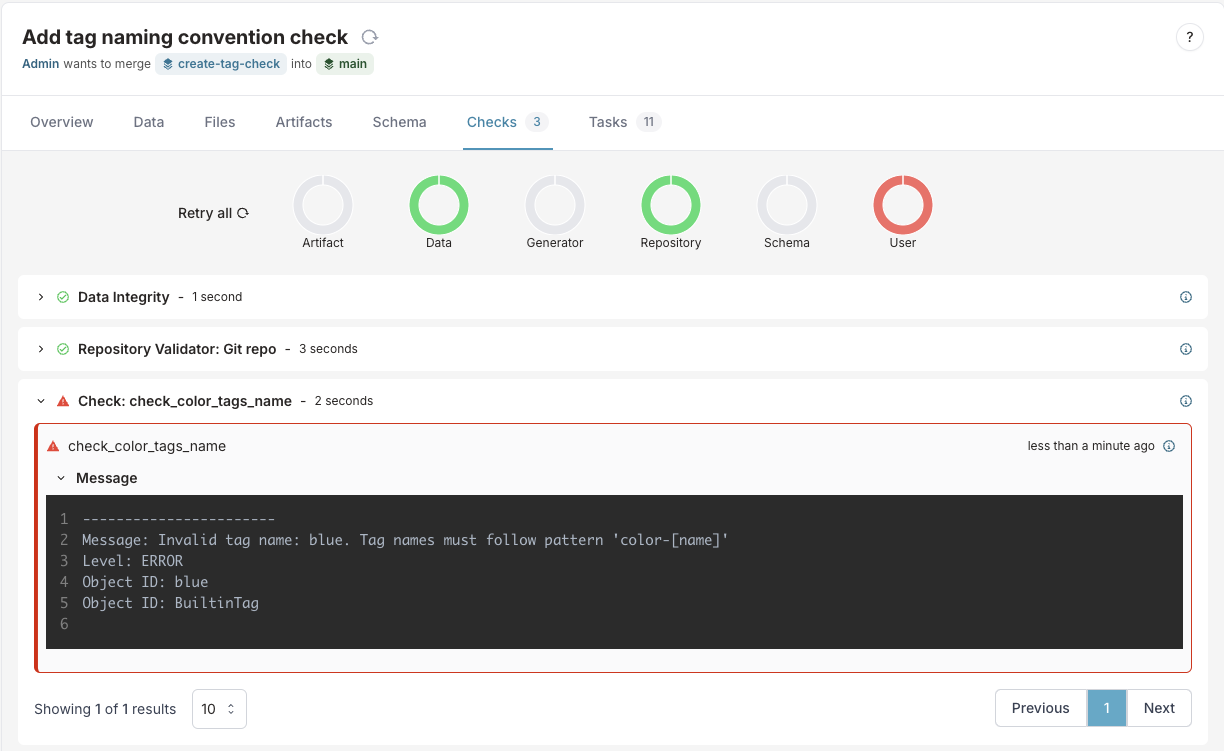

Navigate to the Checks tab
The User Checks should have a red color, indicating a Check has failed
Expanding the Check check_color_tags_name should show us that the check failed because the BuiltinTag objects blue and orange do not match with our naming scheme

Check details

Creating a targeted check

Let's extend our example. We want to introduce a second set of tags. The naming scheme for these tags is different so we would need to introduce a second check.

Therefor we will redefine our check_color_tags_name check as a targeted check, and define a new targeted check for the tags with a different naming scheme.

We will be performing the following steps:

Define targets for the check_color_tags_name check in the repository configuration file
Create a new group ColorTags
Add the existing tags to a group named ColorTags
Modify the tags_check GraphQL query
Test the check_color_tags_name check
Add new BuiltinTags using the other naming schema
Create a new group NumberTags
Add the tags with the number naming scheme to the group
Add a new check to the Python tags_checkk.py script for the number naming scheme
Define a new targeted check in the repository configuration file
Test the new check

Before we start, make sure that you switch back to the main branch in Infrahub.

1. Define the targets for the `check_color_tags_name` check in the repository configuration file

Replace the contents of the .infrahub.yml file with this content.

---
check_definitions:
  - name: "check_color_tags_name"
    class_name: "ColorTagsCheck"
    file_path: "tags_check.py"
    targets: "ColorTags"
    parameters:
      name: "name__value"

We added 2 definitions to the check_color_tags_name:

targets the name of the group with the nodes that we want to target ColorTags
parameters we define a name parameter that will be passed to the check's GraphQL query, in this case we will pass the value of the name attribute of each tag in the group

2. Creating a `ColorTags` group

Targeted checks use nodes in a group a their targets. Create the ColorTags group with this GraphQL query. Take node of the hfid of the group, we will use it in the next steps.

mutation {
  CoreStandardGroupCreate(data: {name: {value: "ColorTags"}}) {
    ok
    object {
      id
      hfid
    }
  }
}

3. Add the existing tags to a the `ColorTags` group

First we need to get the id of the existing tags.

query {
  BuiltinTag {
    edges {
      node {
        id
      }
    }
  }
}

We can then use the id's of the tags to add them to the ColorTags group.

replace the first id with the id of the group
replace the second id with the id of the first tag returned by the previous query
replace the third id with the id of the second tag returned by the previous query
replace the fourth id with the id of the third tag returned by the previous query

mutation {
  CoreStandardGroupUpdate(
    data: {
      hfid: ["ColorTags"],
      members: [
        {id: "<id of tag1>"},
        {id: "<id of tag2>"},
        {id: "<id of tag3>"}
      ]
    }
  ) {
    ok
  }
}

4. Modify the `tags_check` GraphQL query

We need to modify the GraphQL query with the name parameter. The GraphQL query will be executed for every node that is part of the target group.

Replace the contents of the tags_check.gql file with the following contents.

query TagsQuery($name: String!) {
  BuiltinTag(name__value: $name) {
    edges {
      node {
        name {
          value
        }
        description {
          value
        }
      }
    }
  }
}

5. Test the `check_color_tags_name` check

❯ infrahubctl check check_color_tags_name
``[11:50:43] INFO     HTTP Request: GET http://localhost:8000/api/schema/?branch=main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql "HTTP/1.1 200 OK"
           INFO     color_tags_check::ColorTagsCheck: PASSED - {'name': 'color-red'}
           INFO     HTTP Request: POST http://localhost:8000/graphql "HTTP/1.1 200 OK"
           INFO     color_tags_check::ColorTagsCheck: PASSED - {'name': 'color-green'}
[11:50:44] INFO     HTTP Request: POST http://localhost:8000/graphql "HTTP/1.1 200 OK"
           ERROR    color_tags_check::ColorTagsCheck: FAILED - {'name': 'blue'}
           ERROR      Invalid tag name: blue

Notice that the end-result is still the same, the check fails on the blue tag. However we can see that there was now an individual execution of the GraphQL and check per tag in the target group.

6. Add new `BuiltinTags` using the other naming schema

Create two tags, called "1-one", "2-two" either using the frontend or by submitting two GraphQL mutations as per below (just swapping out the name of the tag each time).

mutation CreateTags {
  BuiltinTagCreate(
      data: {name: {value: "1-one"}, description: {value: "The first tag"}}
  ) {
    ok
    object {
      id
    }
  }
}

Take note of their id as we will need it in the next steps.

7. Create a new group `NumberTags`

mutation {
  CoreStandardGroupCreate(data: {name: {value: "NumberTags"}}) {
    ok
      object {
        id
        hfid
      }
  }
}

Take note of the hfid as we will use it in the next step.

8. Add the tags with the number naming scheme to the group

Add the newly created tags to the NumberTags group with the following mutation.

replace the first id with the id of the group
replace the second id with the id of the first tag
replace the third id with the id of the second tag

mutation {
  CoreStandardGroupUpdate(
    data: {
      hfid: ["NumberTags]",
      members: [
        {id: "<id of tag1>"},
        {id: "<id of tag2>"}
      ]
    }
  ) {
    ok
  }
}

9. Add new check logic

Add the following Python code to the tags_check.py script in the repository.

RE_NUMBER_TAG = re.compile(r"^\d+-[a-z]+$")

class NumberTagsCheck(InfrahubCheck):
    query = "tags_check"

    def validate(self, data):
        for tag in data["BuiltinTag"]["edges"]:
            if not RE_NUMBER_TAG.match(tag["node"]["name"]["value"]):
                self.log_error(
                    message=f"Invalid number tag name: {tag['node']['name']['value']}",
                    object_id=tag["node"]["name"]["value"],
                    object_type="BuiltinTag"
                )

10. Define a new targeted check

Replace the contents of .infrahub.yml file with the following contents.

---
check_definitions:
  - name: "check_color_tags_name"
    class_name: "ColorTagsCheck"
    file_path: "tags_check.py"
    targets: "ColorTags"
    parameters:
      name: "name__value"
  - name: "check_number_tags_name"
    class_name: "NumberTagsCheck"
    file_path: "tags_check.py"
    targets: "NumberTags"
    parameters:
      name: "name__value"

We now have 2 targeted checks defined, each targeting its own set of tags, with its own validation logic.

11. Test the new check

Verify that we have 2 checks defined using the infrahubctl command.

❯ infrahubctl check --list
Python checks defined in repository: 2
check_color_tags_name (tags_check.py::ColorTagsCheck) Target: ColorTags
check_number_tags_name (tags_check.py::NumberTagsCheck) Target: NumberTags

Check that the check_color_tags_name fails because of the tag blue not complying with the naming scheme:

❯ infrahubctl check check_color_tags_name
[14:04:50] INFO     HTTP Request: GET http://localhost:8000/api/schema/?branch=main "HTTP/1.1 200 OK
[14:04:51] INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql "HTTP/1.1 200 OK"
           INFO     tags_check::ColorTagsCheck: PASSED - {'name': 'color-red'}
           INFO     HTTP Request: POST http://localhost:8000/graphql "HTTP/1.1 200 OK"
           INFO     tags_check::ColorTagsCheck: PASSED - {'name': 'color-green'}
           INFO     HTTP Request: POST http://localhost:8000/graphql "HTTP/1.1 200 OK"
           ERROR    tags_check::ColorTagsCheck: FAILED - {'name': 'blue'}
           ERROR      Invalid tag name: blue

Check that the check_number_tags_name succeeds:

❯ infrahubctl check check_number_tags_name
[14:09:32] INFO     HTTP Request: GET http://localhost:8000/api/schema/?branch=main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql/main "HTTP/1.1 200 OK"
           INFO     HTTP Request: POST http://localhost:8000/graphql "HTTP/1.1 200 OK"
           INFO     tags_check::NumberTagsCheck: PASSED - {'name': '1-one'}
           INFO     HTTP Request: POST http://localhost:8000/graphql "HTTP/1.1 200 OK"
           INFO     tags_check::NumberTagsCheck: PASSED - {'name': '2-two'}

Creating a Check​

1. Creating a query to collect the desired data​

2. Create the Python check file​

3. Create a .infrahub.yml file​

4. Create a Git repository​

5. Test the check using infrahubctl​

6. Adding the repository to Infrahub​

7. Using the check within Infrahub​

Creating a targeted check​

1. Define the targets for the check_color_tags_name check in the repository configuration file​

2. Creating a ColorTags group​

3. Add the existing tags to a the ColorTags group​

4. Modify the tags_check GraphQL query​

5. Test the check_color_tags_name check​

6. Add new BuiltinTags using the other naming schema​

7. Create a new group NumberTags​

8. Add the tags with the number naming scheme to the group​

9. Add new check logic​

10. Define a new targeted check​

11. Test the new check​
